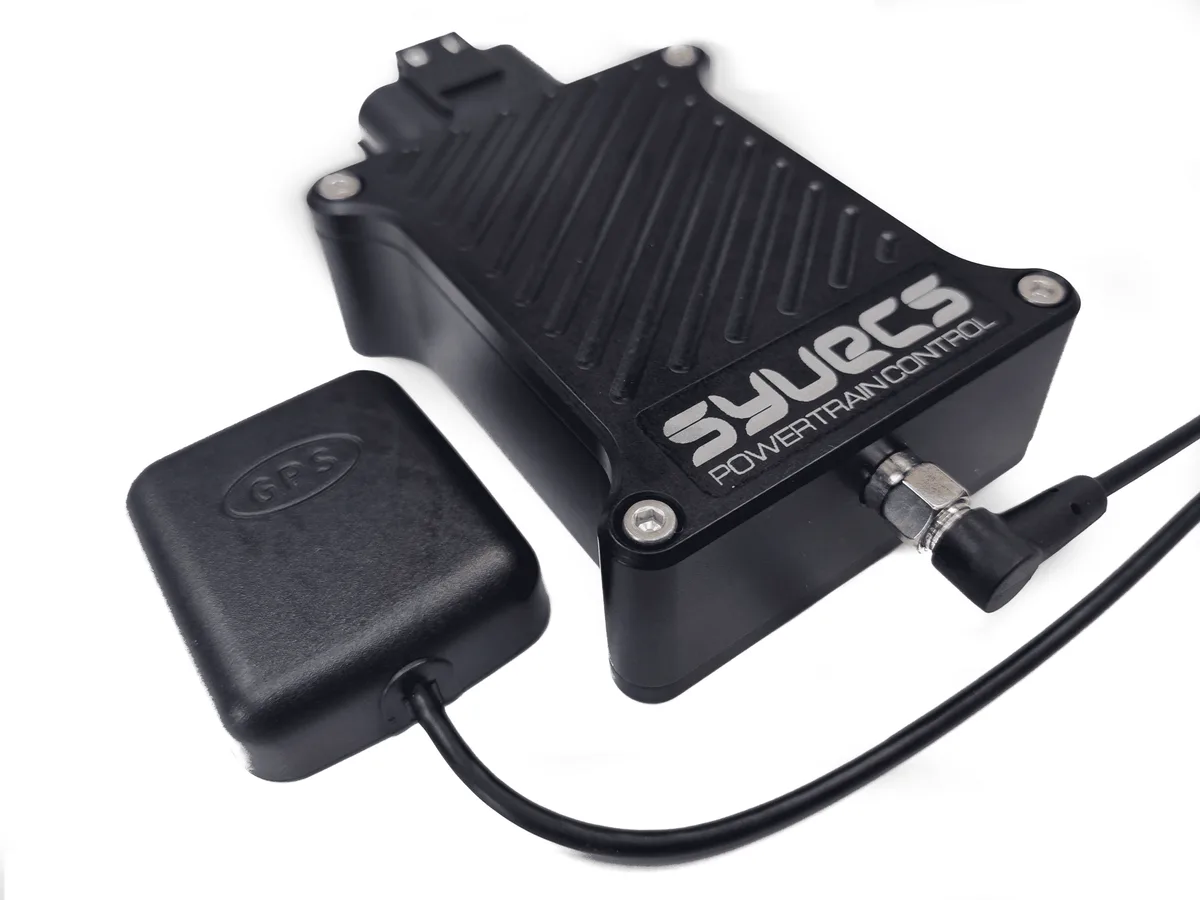

100HZ GPS IMU MODULE

The Syvecs 100hz GPS IMU Module is designed to provide even more control to our engine control units with accurate global positioning, acceleration forces for 6 axis and GPS Speed. The Unit features fast positioning lock with hot restarts due to internal battery storing last positioning data. Supports global GPS, Beidou, Galileo, GLONASS Supports regional QZSS, SBAS 16 million time-frequency hypothesis testing per sec -148dBm cold start sensitivity -165dBm tracking sensitivity 29 second cold start TTFF 3.5 second TTFF with AGPS 1 second hot start 2.0m CEP accuracy Multipath detection and suppression Jamming detection and mitigation AGPS Support Contains LNA, SAW Filter, TCXO, RTC Xtal Works with active and passive antenna On board active antenna short protection On board active antenna detection This is something that our dealers and customers have asked for quite some time in order to provide an accurate speed measurement that allows our advanced traction control strategy to be used on 4wd or drag cars. Circuit based cars gain huge benefits also being able to calibrate the ECUs traction control, torque management and warnings to be based off GPS position, allowing calibrators for
